Throttle Won't Snap Back

Hey guys, need help with my sister's (my old) R6...what am I missing here?

2003 R6.

Here's what I've checked:

Bar end is not rubbing the grip/throttle tube.

The decel cable had a lot of slack in it, so I tightened it up, now the throttle doesn't snap back at all lol. This is confusing.

I can disconnect the cables at the throttle bodies, the spring snaps back without the cables in it.

While they're disconnected I can hold each one and pull them back and forth smoothly, freely, and with no binding.

The throttle tube spins freely with the cables disconnected. There was some gunk on the clip on so I cleaned both it and the inside of the throttle tube.

The throttle cables haven't been rerouted or anything like that, since the problem started. I don't know what I'm missing here. Everything works by itself, I hook it all back up and turn the throttle and it stays open.

Any ideas? Very aggravating because it's such a simple set up, yet it's got the best of me at the moment.

Thanks in advance!

2008 R1 | 2004 ///M3
CLAWHAMM3R is offline
Sponsored Links
Advertisement

post #2 of 12 (permalink) Old 01-07-2013, 06:14 AM
"The Dude abides .. "

MELK-MAN's Avatar

Join Date: Jun 2006
Location: tampa
Posts: 4,634
Bike: 2008 yamaha R6 - 2 bikes
Re: Throttle Won't Snap Back

that is not a "decel" cable. The spring on the throttle bodies does that, and is why the throttle should snap back. the 2nd cable is for safety. So you can close the throttle in the event something happens (like the main cable is pinched, spring on tb breaks, etc.).
Put some iree play back in the cables.

MICHELIN, EBC, Proflow Technologies
Silkolene, JenningsGP, Engine Ice, Sharkskinz, Pit-Bull


Greg Melka - CCS roadracing and FTR harescrambles
www.facebook.com/greg.melka.1
My racin n' ridin youtube vids http://www.youtube.com/user/gregmelka?feature=mhee
MELK-MAN is offline
post #3 of 12 (permalink) Old 01-07-2013, 06:31 AM
UR B-hind Da 8 Ball

8Ball's Avatar

Join Date: Jun 2004
Location: East TN
Posts: 4,958
Bike: '03 R6, XR400, V-Star
Re: Throttle Won't Snap Back

What Greg said. The fact that there was excessive freeplay in the return cable may be an indication that there was a problem, previously, and someone put slack in the cable as a "band aid" fix. I would concentrate on the return cable.

1.It doesn't need to be taught. Some freeplay is OK
2. Lube the cables. Always a good thing to do.
3. Check the routing. They may feel smooth when disconnected, but when connected, there may be some added stress from a bend that is not present when hanging free. This can also present itself when turning the bars all the way to the left or right.



I find a Soap Box comes in handy to get on my High Horse!
8Ball is offline
post #4 of 12 (permalink) Old 01-07-2013, 07:23 AM Thread Starter
BELOW M3

CLAWHAMM3R's Avatar

Join Date: Jul 2009
Location: Clearwater, FL
Posts: 633
Bike: 03 R6
Send a message via AIM to CLAWHAMM3R
Re: Throttle Won't Snap Back

Thanks guys, now that I think about it it doesn't make sense to tighten that cable unless there's a spring throttle side to pull it back.

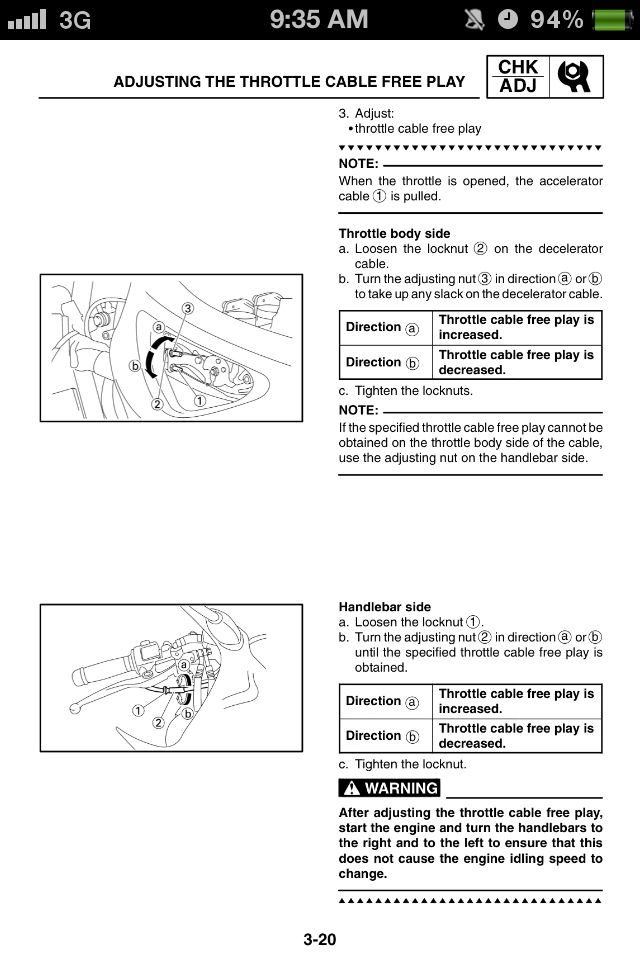

I just saw decel cable in the FSM and it was late and my mind wasn't working right.



I'll put the slack back in that cable. And I'll try a different route for the cables even though nothing changed before the start of this issue. Any of ideas?

2008 R1 | 2004 ///M3
CLAWHAMM3R is offline
post #5 of 12 (permalink) Old 01-07-2013, 08:25 AM
UR B-hind Da 8 Ball

8Ball's Avatar

Join Date: Jun 2004
Location: East TN
Posts: 4,958
Bike: '03 R6, XR400, V-Star
Re: Throttle Won't Snap Back

You'd be surprised how much good some lube will do......(slight pause to let the innuendos commence)


Here's the method I use:
1. disconnect the cables from the handle bar end.
2. cut the bottom corner out of a plastic sandwich bag.
3. insert the cable end into the bag from the hole you just cut.
4. wrap a rubber band around the bag and cable housing (making the bag a funnel)
5. spray lube in the bag and let it drain into the cable.

This method, works well and keeps everything fairly clean.



I find a Soap Box comes in handy to get on my High Horse!
8Ball is offline
post #6 of 12 (permalink) Old 01-07-2013, 08:30 AM
candy red

lopez95632's Avatar

Join Date: Mar 2009
Location: sacramento cali
Posts: 7,468
Bike: 07 r6s
Send a message via MSN to lopez95632
Re: Throttle Won't Snap Back

Pics of sis and we might help more....
lopez95632 is offline
post #7 of 12 (permalink) Old 01-07-2013, 09:00 AM
My Power band is blue

NorthShoreR6S's Avatar

Join Date: Apr 2010
Location: Boston, MA
Posts: 2,343
Bike: 2009 sold,2008 R6 pink
Re: Throttle Won't Snap Back

Quote:
Originally Posted by lopez95632 View Post
Pics of sis and we might help more....

I need a new sig, Can someone make me one please?
NorthShoreR6S is offline
post #8 of 12 (permalink) Old 01-07-2013, 09:14 AM
Parts Pimp

ChiefSmokeDawg's Avatar

Join Date: Sep 2009
Location: JerZ
Posts: 26,278
Bike: 2002 R6, 2008 R6
Re: Throttle Won't Snap Back

Quote:
Originally Posted by 8Ball View Post
You'd be surprised how much good some lube will do......(slight pause to let the innuendos commence)


Here's the method I use:
1. disconnect the cables from the handle bar end.
2. cut the bottom corner out of a plastic sandwich bag.
3. insert the cable end into the bag from the hole you just cut.
4. wrap a rubber band around the bag and cable housing (making the bag a funnel)
5. spray lube in the bag and let it drain into the cable.

This method, works well and keeps everything fairly clean.
You do know they sell cable lube kits with the cable too and lube all included?

Something like this, and you spray the lube in thru the tube provided with the bottle of spray aerosol lube


vs.


CONTACT/EMAIL ME HERE

R6 ECU FLASH Click Here



My 02 Thread My 08 Thread
RIP BALLISTIK: We miss you Ricky!!!
Ask about:-STAHLBUS- -WOODCRAFT- -MOTUL- -FERODO- -BRAKE TECH- -BMC- -Battery Tender-LEO VINCE- -NGK- -EBC- -Canyon Dancer-
ChiefSmokeDawg is offline
post #9 of 12 (permalink) Old 01-07-2013, 10:27 AM
Tracers work both ways

Pipelinz's Avatar

Join Date: Jan 2010
Location: Victoria, BC
Posts: 287
Bike: 04 R6 (Sold) 06 R6R
Re: Throttle Won't Snap Back

Quote:
Originally Posted by ChiefSmokeDawg View Post
You do know they sell cable lube kits with the cable too and lube all included?

Something like this, and you spray the lube in thru the tube provided with the bottle of spray aerosol lube


vs.

Chief knows all the cool tricks and kit

"If it's stupid but it works, it isn't stupid."

“Out of every one hundred men in battle, ten shouldn't even be there, eighty are just targets, nine are the real fighters, and we are lucky to have them, for they make the battle. Ah, but the one, one is a warrior, and he will bring the others back.” ― Heraclitus
Pipelinz is offline
post #10 of 12 (permalink) Old 01-07-2013, 10:48 AM
Parts Pimp

ChiefSmokeDawg's Avatar

Join Date: Sep 2009
Location: JerZ
Posts: 26,278
Bike: 2002 R6, 2008 R6
Re: Throttle Won't Snap Back

Quote:
Originally Posted by Pipelinz View Post
Chief knows all the cool tricks and kit


Or Chief just knows how to spend money.

But I'd bet that bag full of lube is much less than I use with the tool. You won't see a trained mechanic rigging up a plastic bag mess now would you!? Especially since this is routine, frequent and regular maintenance!
