post #51 of 156 (permalink) Old 01-03-2013, 07:13 PM
pin it to win it

bryan j's Avatar

Join Date: Oct 2010
Location: forsyth GA
Posts: 8,010
Bike: 07 r6, 06 yz250f
Send a message via AIM to bryan j
Quote:
Originally Posted by Dieselboy View Post
Link? How-to?
I don't have it with me but there is a good one r6 message net for 2nd Gens


Hey Morrow, you learn any short cuts? I got down to under 3 hours now.

Go fast parts:
Pipercross race filter, Leo sbk slip on, 05 header mod, pcv, bauce racing ecu flash, agg smog block offs, quick turn throttle, 520 rk gxw chain -1-1 renthal sprockets, ebc hh pads
, Shorai battery.

Body:
Robby moto sbk rearsets, woodcraft clip ons & sliders, armor bodies sbk fairings, db screen, vortex v3 gas cap, keyless ignition mod, agg sbk res kit,


Support the forum Vendors

Last edited by bryan j; 01-03-2013 at 07:16 PM.
bryan j is offline
Sponsored Links
Advertisement

post #52 of 156 (permalink) Old 01-03-2013, 07:19 PM
pin it to win it

bryan j's Avatar

Join Date: Oct 2010
Location: forsyth GA
Posts: 8,010
Bike: 07 r6, 06 yz250f
Send a message via AIM to bryan j
http://www.r6live.com/r6-how-guides/...djustment.html

Go fast parts:
Pipercross race filter, Leo sbk slip on, 05 header mod, pcv, bauce racing ecu flash, agg smog block offs, quick turn throttle, 520 rk gxw chain -1-1 renthal sprockets, ebc hh pads
, Shorai battery.

Body:
Robby moto sbk rearsets, woodcraft clip ons & sliders, armor bodies sbk fairings, db screen, vortex v3 gas cap, keyless ignition mod, agg sbk res kit,


Support the forum Vendors
bryan j is offline
post #53 of 156 (permalink) Old 01-03-2013, 07:39 PM
I eat my R6

MorrowDeath's Avatar

Join Date: Aug 2008
Location: N Ontario, CA
Posts: 2,723
Bike: OH FOUR R599
Re: Valve Adjustment

Quote:
Originally Posted by bryan j View Post
I don't have it with me but there is a good one r6 message net for 2nd Gens


Hey Morrow, you learn any short cuts? I got down to under 3 hours now.
Damn , 3 hours that's impressive ...Ha next time I know I can cut the time in half, ill try to shoot for your record

"If you put your mind to it, you can accomplish anything"..... Marty McFly

STUFF FOR SALE

MorrowDeath is offline
post #54 of 156 (permalink) Old 01-03-2013, 07:43 PM
pin it to win it

bryan j's Avatar

Join Date: Oct 2010
Location: forsyth GA
Posts: 8,010
Bike: 07 r6, 06 yz250f
Send a message via AIM to bryan j
I just figured out how to do it with the tank on, radiator just moved forward, and to pull the air box and throttle bodies out in one piece.

Go fast parts:
Pipercross race filter, Leo sbk slip on, 05 header mod, pcv, bauce racing ecu flash, agg smog block offs, quick turn throttle, 520 rk gxw chain -1-1 renthal sprockets, ebc hh pads
, Shorai battery.

Body:
Robby moto sbk rearsets, woodcraft clip ons & sliders, armor bodies sbk fairings, db screen, vortex v3 gas cap, keyless ignition mod, agg sbk res kit,


Support the forum Vendors
bryan j is offline
post #55 of 156 (permalink) Old 01-03-2013, 07:49 PM
I eat my R6

MorrowDeath's Avatar

Join Date: Aug 2008
Location: N Ontario, CA
Posts: 2,723
Bike: OH FOUR R599
Re: Valve Adjustment

Nice, ya the tank I propped up , air boxed removed , radiator removed, throttle bodys I just loosened and moved them back just enough for the valve cover the clear. I also removed most of the carbon build up on the TB's and air box .

"If you put your mind to it, you can accomplish anything"..... Marty McFly

STUFF FOR SALE

MorrowDeath is offline
post #56 of 156 (permalink) Old 01-03-2013, 09:40 PM
pin it to win it

bryan j's Avatar

Join Date: Oct 2010
Location: forsyth GA
Posts: 8,010
Bike: 07 r6, 06 yz250f
Send a message via AIM to bryan j
You know how the air box is attached to the throttle bodies with those few bolts? If you just loosen the throttle bodies you can pull the air box off with the throttle bodies still attached to it.

Go fast parts:
Pipercross race filter, Leo sbk slip on, 05 header mod, pcv, bauce racing ecu flash, agg smog block offs, quick turn throttle, 520 rk gxw chain -1-1 renthal sprockets, ebc hh pads
, Shorai battery.

Body:
Robby moto sbk rearsets, woodcraft clip ons & sliders, armor bodies sbk fairings, db screen, vortex v3 gas cap, keyless ignition mod, agg sbk res kit,


Support the forum Vendors
bryan j is offline
post #57 of 156 (permalink) Old 01-03-2013, 11:27 PM
I eat my R6

verybigtiter6's Avatar

Join Date: Sep 2005
Location: los angeles, ca
Posts: 1,628
Bike: 2009 r6, 2012 cbr 250
Re: Valve Adjustment

Quote:
Originally Posted by MorrowDeath View Post

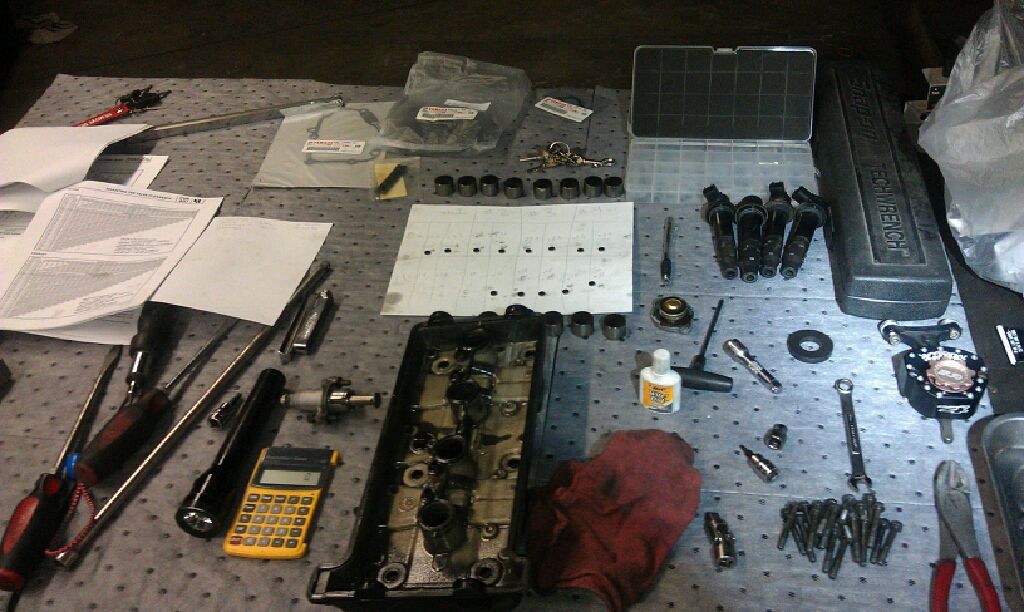

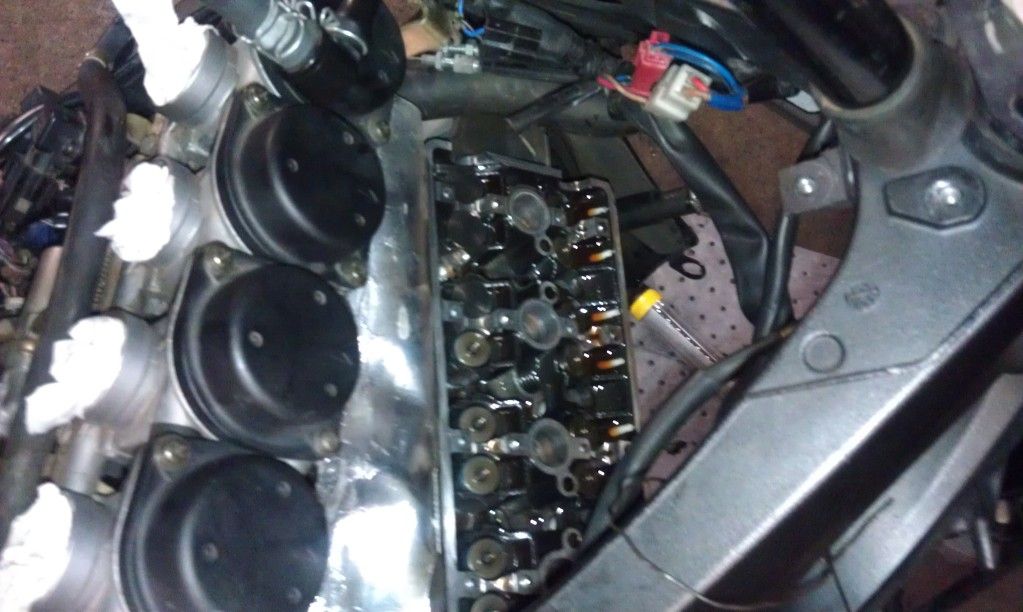

Well the valve adjustment ended up being a success! =) It seemed to be a pretty easy job with no trouble at all, and no extra bolts left over . Its just very time consuming like how everyone says. It took a good 8 hours of working on her for me to complete the job. I triple checked all my measurements, torques, and took my time with it to make sure everything was T&A. All the valves on the intake side were in spec except one on cylinder #4. For the exhaust side, they were all at the min on the tolerance gap, so I bumped the exhaust valves all up to middle of the tolerance gap. I took her out for a short ride today, she seems to be liking the adjustment a lot. Next ill be doing the throttle body sync, then I can finally get her tuned =) Thanks for all the help guys, heres some pics


good job morrow as much as i want to do my own maintenance, i dont think i have the balls to do this
verybigtiter6 is offline
post #58 of 156 (permalink) Old 01-04-2013, 09:32 AM
I eat my R6

MorrowDeath's Avatar

Join Date: Aug 2008
Location: N Ontario, CA
Posts: 2,723
Bike: OH FOUR R599
Re: Valve Adjustment

It's not bad at all man , the write ups, videos and owner manual helped a bunch. Just double check all your work .

"If you put your mind to it, you can accomplish anything"..... Marty McFly

STUFF FOR SALE

MorrowDeath is offline
post #59 of 156 (permalink) Old 01-05-2013, 05:42 PM
I eat my R6

MorrowDeath's Avatar

Join Date: Aug 2008
Location: N Ontario, CA
Posts: 2,723
Bike: OH FOUR R599
Re: Valve Adjustment

Here are the measurements I got for my bike by the way. For the 03-04 model R6 manual calls for 13~20 mm on In and 23~30 mm on Ex

Before:

----- Cyl #1 -- Cyl #2 --- Cyl #3 ---- Cyl #4
Ex: [.23|.23] [.23|.23] [.23|.23] [.23|.20]

In: [.15|.18] [.15|.15] [.15|.15] [.15|.13]

After:

----- Cyl #1 -- Cyl #2 --- Cyl #3 -- Cyl #4
Ex: [.27|.27] [.26|.26] [.29|.28] [.27|.27]

In: [.15|.18] [.15|.15] [.15|.15] [.15|.18]

"If you put your mind to it, you can accomplish anything"..... Marty McFly

STUFF FOR SALE


Last edited by MorrowDeath; 01-05-2013 at 05:52 PM.
MorrowDeath is offline
post #60 of 156 (permalink) Old 01-20-2013, 02:20 PM
I eat my R6

MorrowDeath's Avatar

Join Date: Aug 2008
Location: N Ontario, CA
Posts: 2,723
Bike: OH FOUR R599
Re: Valve Adjustment

Im trying to get ready for my custom tune soon. So far ive done a valve adjustment , spark plugs , air filter , some sea foam in the tank and a little in the oil, and a fresh oil change. Im waiting for my carbtune tool to arrive from the uk, it should be here this week. So after im done doing the throttle body sync is their anything else I can/should do before hand for best possible results?

"If you put your mind to it, you can accomplish anything"..... Marty McFly

STUFF FOR SALE

MorrowDeath is offline
