Old 12-10-2012, 06:57 PM   #311
motoman21
I eat my R6

motoman21's Avatar

Join Date: Jan 2008
Posts: 1,216
Bike: '12 R6
Re: How-to: Install UniqueMotoLights Mini H1 Projector kit into 2006 - 2012 R6 headli

Quote:
Originally Posted by Glock21sf_Saiga12 View Post
haha.. yeah the factory puts on a lot of "extra" bolts/fasteners that are left over when done
Yeah I've been reading and watching vids on how to disassemble the fairings. Just don't Wana break any tabs or clips on em. Sorry again about Ur bike man. I will definitely post pics when I'm done.
__________________
Soon to be seen...unveiling in march!!!!
motoman21 is offline   Reply With Quote
Sponsored Links
Advertisement

Old 12-14-2012, 03:41 PM   #312
motoman21
I eat my R6

motoman21's Avatar

Join Date: Jan 2008
Posts: 1,216
Bike: '12 R6
Re: How-to: Install UniqueMotoLights Mini H1 Projector kit into 2006 - 2012 R6 headli

I just got my kit woohoo! Waiting for my donor headlight to start the install. Thanks
__________________
Soon to be seen...unveiling in march!!!!
motoman21 is offline   Reply With Quote
Old 12-14-2012, 04:01 PM   #313
motoman21
I eat my R6

motoman21's Avatar

Join Date: Jan 2008
Posts: 1,216
Bike: '12 R6
Re: How-to: Install UniqueMotoLights Mini H1 Projector kit into 2006 - 2012 R6 headli

Where does the stock neg(-) from the R6 harness go to? I can see all the other wires accounted for and connected but what about the negatives? I dont have the halos.
http://images57.fotki.com/v1354/phot...MG_0902-vi.jpg
__________________
Soon to be seen...unveiling in march!!!!

Last edited by motoman21; 12-14-2012 at 04:06 PM.
motoman21 is offline   Reply With Quote
Old 12-14-2012, 04:27 PM   #314
motoman21
I eat my R6

motoman21's Avatar

Join Date: Jan 2008
Posts: 1,216
Bike: '12 R6
Re: How-to: Install UniqueMotoLights Mini H1 Projector kit into 2006 - 2012 R6 headli

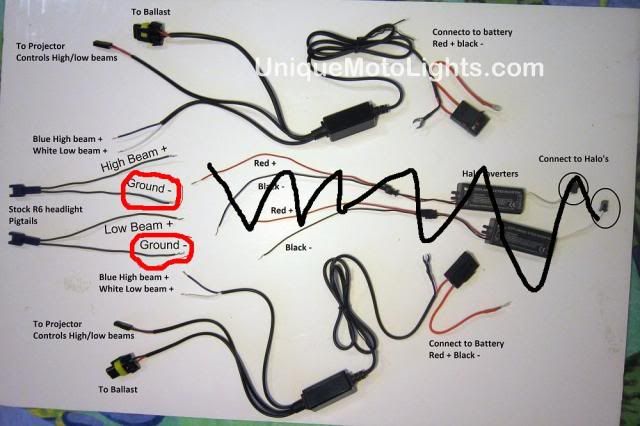

These are the wires I mean

Where do they go? Do I have to splice to a ground or lengthen them and run em to the neg of the batt?
__________________
Soon to be seen...unveiling in march!!!!
motoman21 is offline   Reply With Quote
Old 12-14-2012, 07:56 PM   #315
Miller'sR6
Lifetime Premium

Miller'sR6's Avatar

Join Date: Feb 2012
Location: Oceanside, CA
Posts: 1,536
Bike: 2012 Yamaha Blue R6
Re: How-to: Install UniqueMotoLights Mini H1 Projector kit into 2006 - 2012 R6 headli

Just ground them out on the frame or you can run a wire all the way to the battery.
Miller'sR6 is offline   Reply With Quote
Old 12-14-2012, 08:53 PM   #316
Lojack
My R6 eats me.

Join Date: May 2012
Location: Arlington Heights, IL
Posts: 28
Bike: '09 R6 white/red
Re: How-to: Install UniqueMotoLights Mini H1 Projector kit into 2006 - 2012 R6 headli

please help folks.
Any1 know where I can get those blue stock R pigtails? (bought the bike and it had HIDs installed, guess the kid threw out the stock wires).
Attached photos.
Attached Thumbnails
Click image for larger version

Name:	pigtails BLUE.jpg
Views:	40
Size:	495.4 KB
ID:	87548   Click image for larger version

Name:	IMG_0902-vi[1].jpg
Views:	30
Size:	212.9 KB
ID:	87549
Lojack is offline   Reply With Quote
Old 12-25-2012, 11:13 PM   #317
Hijakd
Yami scares me the bitch

Hijakd's Avatar

Join Date: Mar 2012
Location: Brisbane, Australia
Posts: 122
Bike: Turbo Vespa, awww yeeee
Re: How-to: Install UniqueMotoLights Mini H1 Projector kit into 2006 - 2012 R6 headli

man where the hell do u find the stock pigtails on the bike? are they the things that originally connected to the back of the stock bulb? Im so lost doing this.......
__________________
If life gives you lemons - Keep them, because hey, free lemons.

"Prey on the weak and you will survive, prey on the strong and you will live" - some badass
Hijakd is offline   Reply With Quote
Old 12-25-2012, 11:20 PM   #318
borka
Vendor

borka's Avatar

Join Date: Nov 2011
Location: Atlantic Beach, FL
Posts: 368
Bike: 05 SV650 Streetfighter
Re: How-to: Install UniqueMotoLights Mini H1 Projector kit into 2006 - 2012 R6 headli

Quote:
Originally Posted by motoman21 View Post
These are the wires I mean

Where do they go? Do I have to splice to a ground or lengthen them and run em to the neg of the batt?
if you dont have halos, they go no where, dont connect them to anything, leave them dangling. only use the low beam + to both white wires on relays and high beam + to both blue wires on relays. thats it.

Quote:
Originally Posted by Lojack View Post
please help folks.
Any1 know where I can get those blue stock R pigtails? (bought the bike and it had HIDs installed, guess the kid threw out the stock wires).
Attached photos.
They are dangling from the back of the headlight. they connect to the stock light bulbs, from the inside of the headlight and the other end comes out from the bottom back of the headlight.

see the white plug on the back?
yours will be blue, in the same place.


Quote:
Originally Posted by Hijakd View Post
man where the hell do u find the stock pigtails on the bike? are they the things that originally connected to the back of the stock bulb? Im so lost doing this.......
see the white plug on the back?
yours will be blue, in the same place.


They are dangling from the back of the headlight. they connect to the stock light bulbs, from the inside of the headlight and the other end comes out from the bottom back of the headlight.
__________________
Want Projectors?
Complete 06+ R6 HID Projector Kits and retrofit service.
Click Here for more info
1998 - 2012 R6 R6S UV Filtering Quartz Glass plug and play 35w and 55w premium hid kits.
www.bkmoto.com
borka is offline   Reply With Quote
Old 12-25-2012, 11:24 PM   #319
Hijakd
Yami scares me the bitch

Hijakd's Avatar

Join Date: Mar 2012
Location: Brisbane, Australia
Posts: 122
Bike: Turbo Vespa, awww yeeee
Re: How-to: Install UniqueMotoLights Mini H1 Projector kit into 2006 - 2012 R6 headli

ok so the original plug that is connected to the back of the stock bulb just gets left alone and hangs free after the installation
__________________
If life gives you lemons - Keep them, because hey, free lemons.

"Prey on the weak and you will survive, prey on the strong and you will live" - some badass
Hijakd is offline   Reply With Quote
Old 12-25-2012, 11:28 PM   #320
borka
Vendor

borka's Avatar

Join Date: Nov 2011
Location: Atlantic Beach, FL
Posts: 368
Bike: 05 SV650 Streetfighter
Re: How-to: Install UniqueMotoLights Mini H1 Projector kit into 2006 - 2012 R6 headli

Quote:
Originally Posted by Hijakd View Post
ok so the original plug that is connected to the back of the stock bulb just gets left alone and hangs free after the installation
Did you read the instructions on the first page?

The original black plug that connects to the original light bulbs gets cut off and tossed in the garbage. then you pull out the wires and blue plugs out from the headlight, and you connect all the new wiring to these plugs, as per the instructions on the first page of this post.

Quote:
You will need to cut off the the H7 plugs from the stock pigtails that connect to the light bulbs and take out the wires from the headlight.
__________________
Want Projectors?
Complete 06+ R6 HID Projector Kits and retrofit service.
Click Here for more info
1998 - 2012 R6 R6S UV Filtering Quartz Glass plug and play 35w and 55w premium hid kits.
www.bkmoto.com
borka is offline   Reply With Quote
