How To Install HID Lights On 2006 R6+

Hey everyone, here is yet another little how to on an hid install. I did not want to see any wires nor did I want to drill any holes. And I'd like to share how. All and all, I'd say I am very happy with the end result. Anyway, hope this helps someone:


1) Remove the windscreen


To do this, remove the front four black screws.


Then, remove mirrors by unbolting the two nuts on each side.


2) Now begin removing the front cowl assembly and headlight.


Remove these bolts on both sides, disconnect the harnesses, and remove front cowl.











3) Install the HID Bulbs in headlight


Grab the two lights from kit.

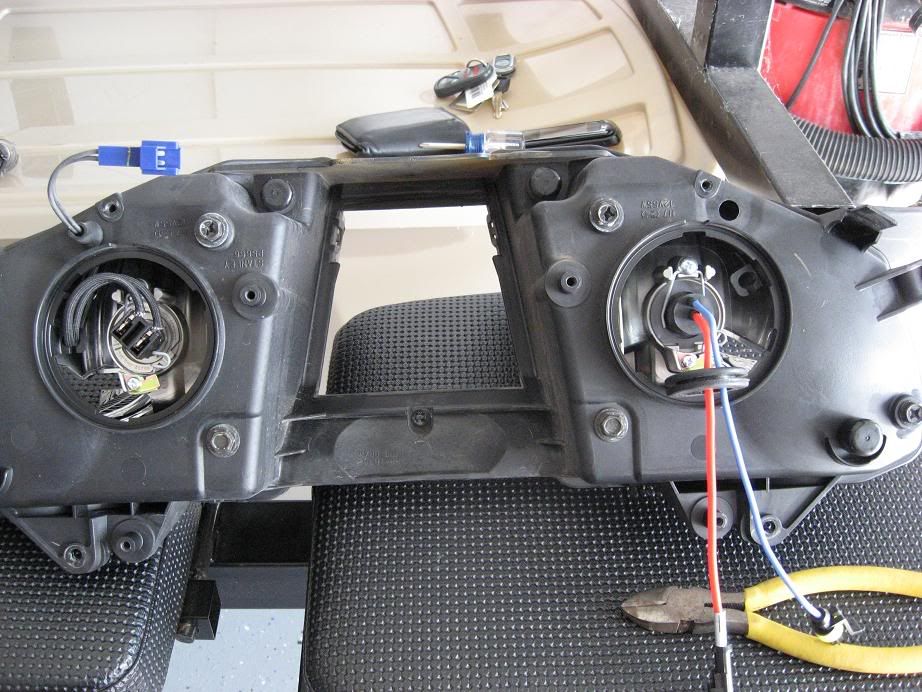

On the left is what the O.E. looks like and on the right is with the HID bulb in, and wires not yet ran.
*It is important to note what is going on here. I am removing the O.E. black harness and am replacing it with the new wires that are attached to the bulb. I am running them through the hole that is already provided.

This is what it looks like after.


4) Creating power harness for ballasts

I removed the blue connector from headlight harness, because I will not be using them anymore...


Use the power harness provided in the kit...


And splice using Yamaha's blue connector to the kits...



5) Mounting ballasts


This is somewhat self explanatory, but I mounted mine right above each of my turn signals inside the fairings.






6) Attach and bolt back up

Now it is as simple as bolting headlight back up into the cowl, bolting cowl back up the fairing stay, and connect harnesses.





Finish (except for the mirrors)




**Yes, that's Samuel L. Jackson on the tv...
zac5876 is offline   Reply With Quote
Sponsored Links
Advertisement

Old 11-12-2008, 06:50 PM   #2
nice08r6
My R6 eats my $$

nice08r6's Avatar

Join Date: Jun 2008
Location: Durham, NC
Posts: 414
Bike: 2008 Yamaha R6
Re: How To Install HID Lights On 2006 R6+

very nice how to, looks good man, very clean install, i did mine the lazy way. so i got wires sticking out of my dust covers...
__________________

2008 Yamaha YZF-R6
nice08r6 is offline   Reply With Quote
Old 11-12-2008, 07:33 PM   #3
misterjj
I eat my R6

misterjj's Avatar

Join Date: Jan 2006
Location: Central NJ
Posts: 1,358
Bike: 2007 R6 Charcoal
Re: How To Install HID Lights On 2006 R6+

Nice Job
misterjj is offline   Reply With Quote
Old 11-13-2008, 02:07 PM   #4
zac5876
Focus

zac5876's Avatar

Join Date: Apr 2008
Location: Houston
Posts: 728
Bike: 06 R6
Re: How To Install HID Lights On 2006 R6+

Thanks guys.

Quote:
Originally Posted by nice08r6 View Post
very nice how to, looks good man, very clean install, i did mine the lazy way. so i got wires sticking out of my dust covers...
I'm just to damn picky I suppose.
zac5876 is offline   Reply With Quote
Old 11-17-2008, 09:03 AM   #5
BMoney20
Pure Secks

BMoney20's Avatar

Join Date: Jul 2007
Location: Miami, FL
Posts: 60
Bike: 2002 R6
Send a message via AIM to BMoney20
Re: How To Install HID Lights On 2006 R6+

man this is an amazing how to.....I don't have this gen of bike but it's still amazing

edit: it also looks sick w/ HIDs
__________________
Pretend I put something sweet here!?!

Last edited by BMoney20; 11-17-2008 at 09:08 AM.
BMoney20 is offline   Reply With Quote
Old 11-17-2008, 09:21 AM   #6
Liquid-6
Track Day Junkie

Liquid-6's Avatar

Join Date: Sep 2008
Location: North Texas
Posts: 594
Bike: 08 R6
Re: How To Install HID Lights On 2006 R6+

Very nice write up.
__________________
Liquid-6 is offline   Reply With Quote
Old 11-17-2008, 09:49 AM   #7
ZucoR6
My R6 eats n00bs

ZucoR6's Avatar

Join Date: Feb 2008
Location: Albany, NY
Posts: 195
Bike: 08 R6
Re: How To Install HID Lights On 2006 R6+

Great job, and nice write up! You definitely took the scenic route on that install but the results speak for themselves.
__________________
I've been in a treatment center for drinkin'. I stayed for two days, then escaped.
-Evel Knievel
ZucoR6 is offline   Reply With Quote
Old 11-17-2008, 09:04 PM   #8
zac5876
Focus

zac5876's Avatar

Join Date: Apr 2008
Location: Houston
Posts: 728
Bike: 06 R6
Re: How To Install HID Lights On 2006 R6+

Thanks again guys...
zac5876 is offline   Reply With Quote
Old 11-18-2008, 11:22 AM   #9
stringztoo
anyone seen my kneecaps?

stringztoo's Avatar

Join Date: Aug 2008
Location: NYC
Posts: 176
Bike: 2003 R6
Send a message via AIM to stringztoo Send a message via Yahoo to stringztoo
help!

Well since no instructions were provided with my Umnitza kit I had to go on the net to try and find a write-up. (I found yours)


You show how you clipped the blue connector and paired it with the power connectors from the HID kit, shown here:



I did that. I also clipped the wires coming from the buld and re-routed them through the casing, then reattached them; shown here:



From then on I was told it was plug and play, but once I reconnected all the plugs and reattached the headlight to the bike via the blue connectors, nothing lit up at all. Here is my setup as it stands right now.







I only thing I didn't touch were the black wires inside the casing that originally attached to OEM bulbs. I just assumed that since the HID bulbs have their own wires attached to the back of them that I don't need to worry with that black plug that originally plugged into the OEM lights.

I have checked all my wire snips/reconnects and every single one is tight and clean. The only thing left (if I did the wiring properly) is that either my bulbs or ballasts arrived DOA.

HELP!
__________________
2003 R6, Yoshimura TRC Carbon Slip-On, Dual headlight conversion, 5000k HIDs, 70mm CCFL angel eyes, Vortex 520 conversion (15/50),
Pazzo shorties, Rear seat cowl, Integrated turn signals in the mirrors, Flush mounted side signals, Integrated taillight, Fender eliminator kit
(PM me for MisterJJ's email if you need to contact him)
stringztoo is offline   Reply With Quote
Old 11-18-2008, 05:29 PM   #10
zac5876
Focus

zac5876's Avatar

Join Date: Apr 2008
Location: Houston
Posts: 728
Bike: 06 R6
Re: How To Install HID Lights On 2006 R6+

Could be a handful of things here...but what you have going on so far does appear to be correct.


1) Grab your voltmeter and ensure that you're connecting positive to positive (whats circled)

(perhaps harness is different in 06)

2) Check your fuses
(the main headlight fuse on the bike is still controlling power sent to the ballasts)

3) Have you both lights, tried both ballasts?
(maybe one of your ballasts is bad, or bulb??)

4) I know it's obvious, but lights do not turn on without bike started...

Try these, post your update...
