[Old Raven]

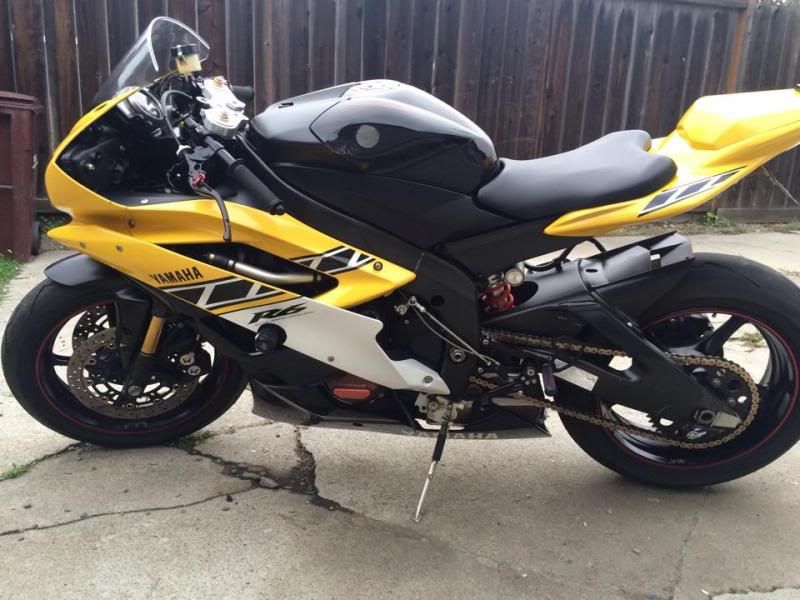

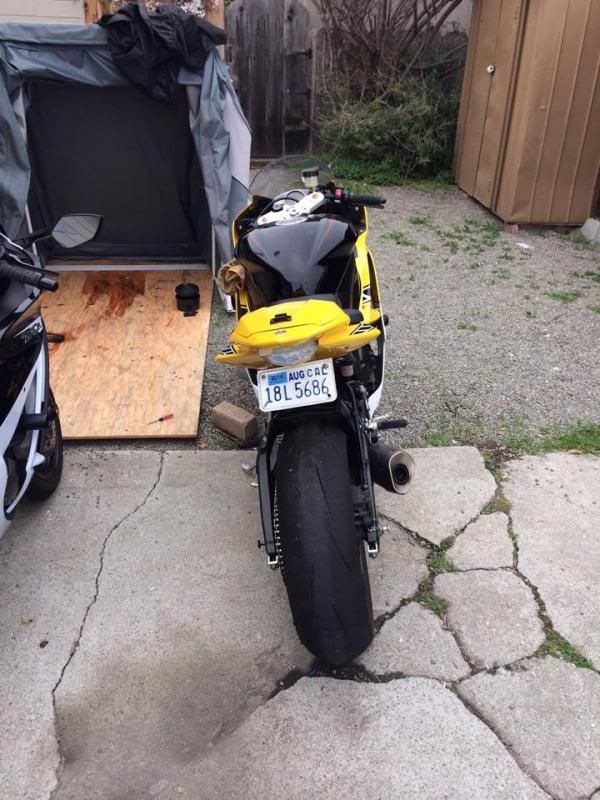

Hey guys, a friend of mine just bought his bike a month ago but is now selling it because he got a screaming deal on a 2011 600RR. He's asking $3800 for the bike as it sits.

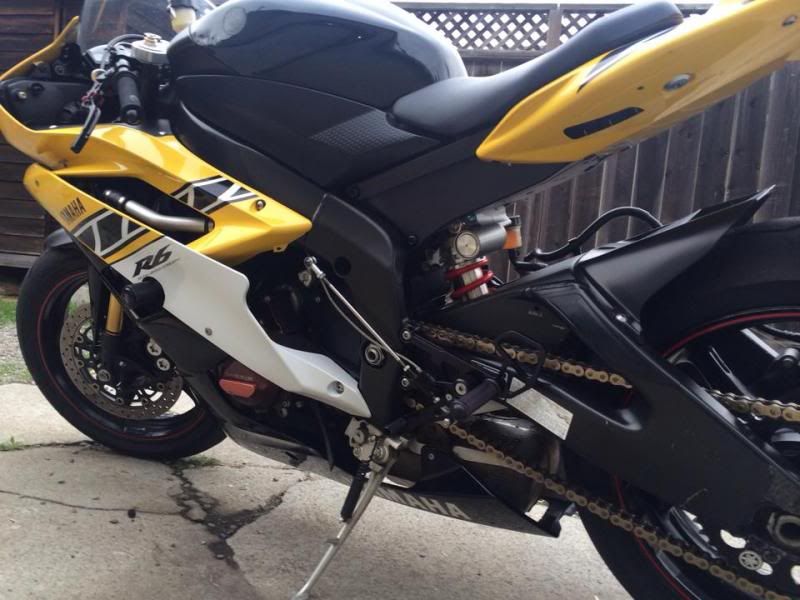

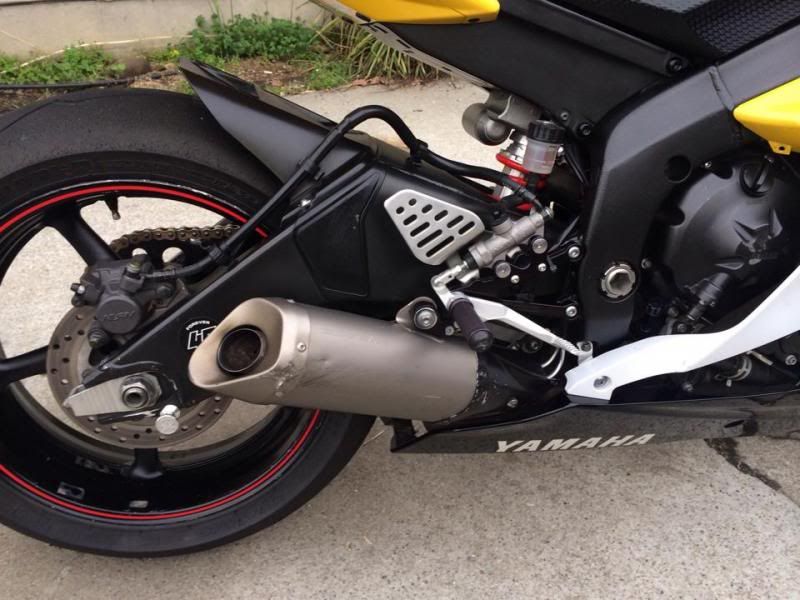

The bike has been setup as a pseudo track bike including clip-ons, a quick shifter, rear sets, -1 front, +2 in back, new chain, BMC air filter, and Woodcraft Stator cover. It has 23k on the chassis but the engine supposedly has about 10k.

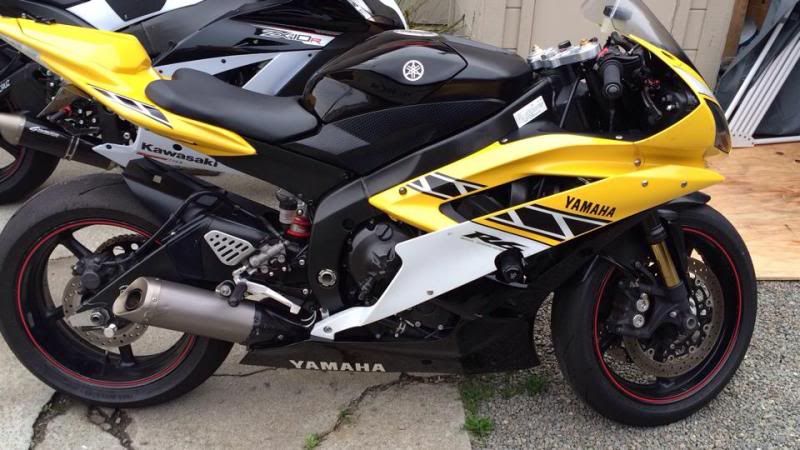

Now I realize its been down and is not a show bike and from what I can tell it runs strong. The only issue I'm having is trying to identify the forks. Has anyone ever seen black and gold forks like what is on there? I really want to make this deal happen but, I don't want to inherit someone else's problem. Any help you guys can loan would be greatly appreciated.

Thanks in advance!



[redisdeadrideblue]

Looks to me like stock forks with TiNi coated lower tubes.



[Ryan5544]

Looks to me like stock forks with TiNi coated lower tubes.

This.

Looks like sort of a nice upper triple clamp on there, too. Unless it was just polished or something.



[Aleeex]

I've seen that thing on barf... Its sad.. I sold my fairly clean r6 with 7k miles for a few bucks more..



[DanQ]

Those look like OEM with gold inner tubes to me.



[Drizzy]

Aren't these 05 forks? They don't have the adjustment knob on the front.

sent while on the move



[redisdeadrideblue]

Those look like OEM with gold inner tubes to me.

This

Aren't these 05 forks? They don't have the adjustment knob on the front.

sent while on the move

Looks like there is one there to me...



[Drizzy]

Looks like there is one there to me...

I'm looking through a busted cell phone screen so I could be wrong lol but you sure you're not looking at the fender mounting bolt?

sent while on the move



[DanQ]

Aren't these 05 forks? They don't have the adjustment knob on the front.

sent while on the move

You are correct sir. No external compression valve.



[redisdeadrideblue]

I'm looking through a busted cell phone screen so I could be wrong lol but you sure you're not looking at the fender mounting bolt?

sent while on the move

100% sure



[redisdeadrideblue]

You are correct sir. No external compression valve.

Okay, so maybe Im wrong.... :laugh



[redisdeadrideblue]

Thats what I get for using a phone to see too....:thumbdown. stupid blocking software.



[DanQ]

Okay, so maybe Im wrong.... :laugh

They definitely look to be 05 R6 forks, but the caps are from a non-Raven and the brakes are from a Raven.



[redisdeadrideblue]

They definitely look to be 05 R6 forks, but the caps are from a non-Raven and the brakes are from a Raven.

Yeah, the lack of compression adjusters is definitely 05 like you say.... It looks like an 05 fork with coated tubes. Not sure why you would retrofit an 05 fork to that bike....



[Drizzy]

Thats what I get for using a phone to see too....:thumbdown. stupid blocking software.

:laugh all good, buddy.

sent while on the move



[DanQ]

Yeah, the lack of compression adjusters is definitely 05 like you say.... It looks like an 05 fork with coated tubes. Not sure why you would retrofit an 05 fork to that bike....

I don't know. I actually prefer the 06+ forks more, with the 08+ being my favorites. I have two sets of 06-07 forks at home to work on right now, so I may do some overall measurement comparison for the sake of knowing. But even in being 05 forks, the front end does not appear to have matching parts in that the brakes or the caps weren't originally for the forks. And due to the cartridge rod differences between the models, it's not likely that the caps are from anything other than a 2005 model.



[redisdeadrideblue]

I don't know. I actually prefer the 06+ forks more, with the 08+ being my favorites. I have two sets of 06-07 forks at home to work on right now, so I may do some overall measurement comparison for the sake of knowing. But even in being 05 forks, the front end does not appear to have matching parts in that the brakes or the caps weren't originally for the forks. And due to the cartridge rod differences between the models, it's not likely that the caps are from anything other than a 2005 model.

:werd I agree the 08s are the shiznit. Not much diff than the 06/07 though. It does look like some mix and match, but its kinda sketchy that it has 05 forks. Doesnt make much sense unless it was wrecked or had nice forks that were parted and these were thrown on to sell it.



[DanQ]

:werd I agree the 08s are the shiznit. Not much diff than the 06/07 though. It does look like some mix and match, but its kinda sketchy that it has 05 forks. Doesnt make much sense unless it was wrecked or had nice forks that were parted and these were thrown on to sell it.

More or less my general feeling about it. Although for a mix and match, someone took the pain to replace the inner tubes with some nice coated ones, probably at an expense of $175 or more per leg.



[redisdeadrideblue]

More or less my general feeling about it. Although for a mix and match, someone took the pain to replace the inner tubes with some nice coated ones, probably at an expense of $175 or more per leg.

Unless they had the tools to do it themselves..... or to replace some leaking seals...



[DanQ]

Unless they had the tools to do it themselves..... or to replace some leaking seals...

No, I'm just talking tubes. Them things get pricey. I did one set and sold the tools. On top of the frustration factor, I ruined a tube and fork bottom.
